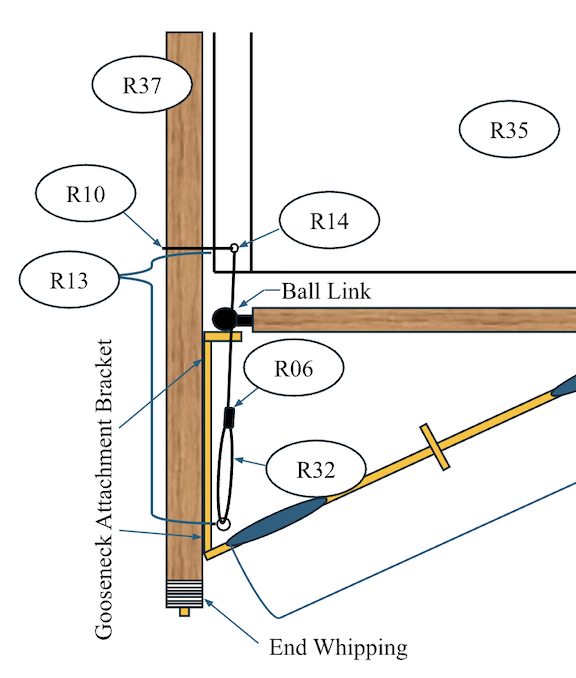

downhaul [R13]: A device used to tighten the luff of a boom-footed sail by pulling downward on a eyelet in the luff of a mainsail above the tack. This is also known as a Cunningham.
The downhaul on a model yacht is made up of a piece of braided fishing line [R32] and a bowsie [R06]. It attaches to the bottom of the tack of the mainsail and to the bracket where the boom vang attaches.
Mast
Control loop
Downhaul (Cunningham)
Main (sail)
Line
Bowsie
Eyelet
Sources
Note: links to sources may break. If you find something that needs to be updated, please make a Website Comment on our Comment Form.
- Bowsie – Select medium and black or red in an appropriate quantity. Available from SAILSetc.
- Bowsie – Pekabe 309 Bowsie
- Cyanoacrylate adhesive (thin) – High quality adhesive – available on Amazon.
- Line – Braided fishing line w/abrasive resistant fibers – select 100 lb. rating. Available on Amazon.
