backstay bracket [R02]: A fixture that the backstay attaches to near the stern of a sailboat as noted under backstay.
The backstay bracket is mounted on the centerline of the boat either on the deck or the transom. There are numerous backstay brackets available commercially, or you may choose to make one. A simple screw eye may suffice. You may want something more substantial like a one-hole rack. This would allow you to attach it using more screws and would improve the ability of the bracket to withstand the forces placed on it.

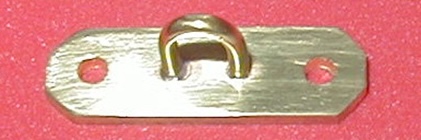

You can make a very nice bracket from a Tee-shaped piece you can make using the information from the article referenced below. There is a photo of a homemade backstay bracket. This bracket is made from two pieces of brass angle soldered together.

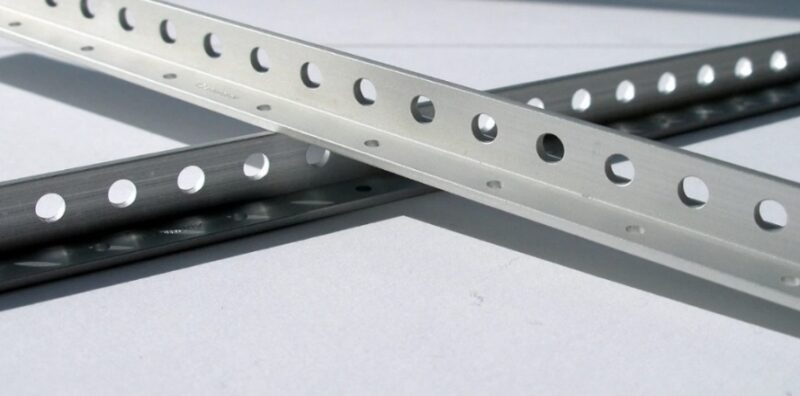

The Pekabe 358 shroud plate material may be cut and finished to the length needed for the backstay bracket. The other examples are ready for use.
Sources
Note: links to sources may break. If you find something that needs to be updated, please make a Website Comment on our Comment Form.

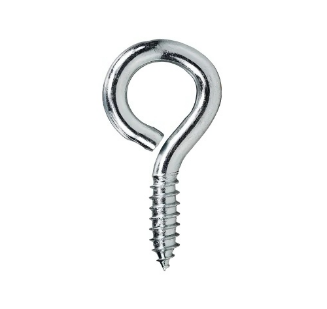

- Brass screw eye (0.55 inch) – available on Amazon.
- Backstay bracket – available from the following:
- Model Yacht Fittings – MYF – SP-1 or SP2 – 2
- Pekabe (Worth Marine) – 358 Chain Plate Shroud Rack (can be cut to size).
- SAILSetc – select jib rack Type L, one hole
- Homemade
Related Articles
- TMY Editorial Staff. “Tee-Shaped Brass for Various Fittings.” The Model Yacht. 24:2. Summer 2023.
- These Tees can be used for making a shroud rack, mast step, mast crane, backstay bracket, and other fittings.
- “Making Parts from Tee-Shaped Brass.” usvmyg.org, June 2026.
- This is a “How to” article that describes how to make a jib rack, shroud racks, and your backstay bracket along with other fittings you will need to rig your boat.
